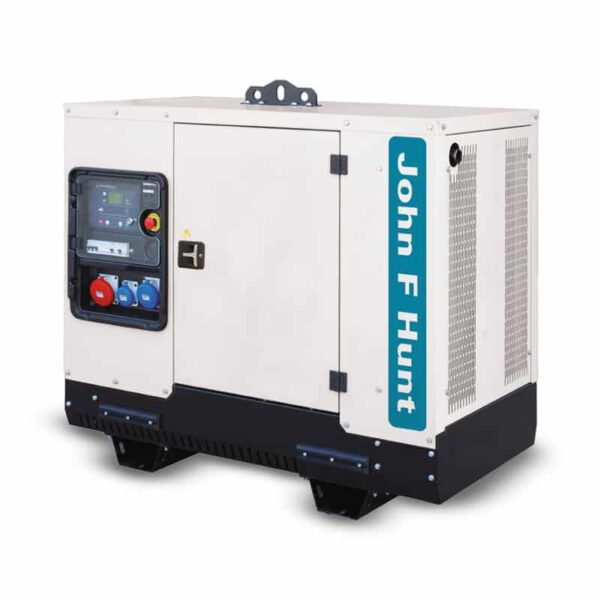

20 kVA Silenced Generator
Product Details
Our range of silenced generators are custom built to John F Hunt specification to ensure industry leading performance. Manufactured for the rental market, they are tough & ultra-reliable. Fitted with Deep Sea panels, they offer a wide range of settings to suit all applications, they are simple to use & with all the features our customers require.
Download Spec sheet
Product Description
| STANDBY POWER kVA | PRIME POWER kVA | FUEL TANK CAPACITY | FUEL (L/H) CONSUMPTION@ 50% | FUEL (L/H) CONSUMPTION@ 75% | FUEL (L/H) CONSUMPTION@ 100% | dBA @ 7m | SIZE L x W x H mm | WEIGHT kg |
| 22 | 20 | 75 | 2.70 | 4.05 | 5.40 | 65 | 1500 800 1250 | 700 |
Features
- Hot dip galvanised sound attenuated enclosure.
- Powder coated grey / white
- Engine: Iveco / Kohler / Cummins / Perkins
- Alternator: Mecc Alte / Leroy Somer
- Bunded fuel tanks complete with 3 way valve
- Central lift points & Forklift pockets – complete with rubber bumpers
- 4 pole circuit breakers with variable earth leakage protection
- Socket kits
- Oil pressure & high coolant/water temperature sensor & shutdown
- Deep sea control panels
- Stainless steel / Teflon locks & handles, lockable canopy with common single keys
- Sump oil vac extraction pumps
- Battery isolators & battery chargers
- Racor fuel filters
- Generators from 100 kVA upwards are available to synchronise & load share
- External contact autostart
- Hardwire via copper bus bars (not available on 20 kVA)
- Micro switch protection on bus bar (not available on 20 kVA)
- Current transformer
- 50/60 Hz switchable
- Low Water & Oil level alarm
Features - Option: Trailer mounted road tow from 20 -100 kva
- Option: Generators from 100kVA upwards are available to synchronise & load share
